Projection Weld Stud

About Projection Weld Stud

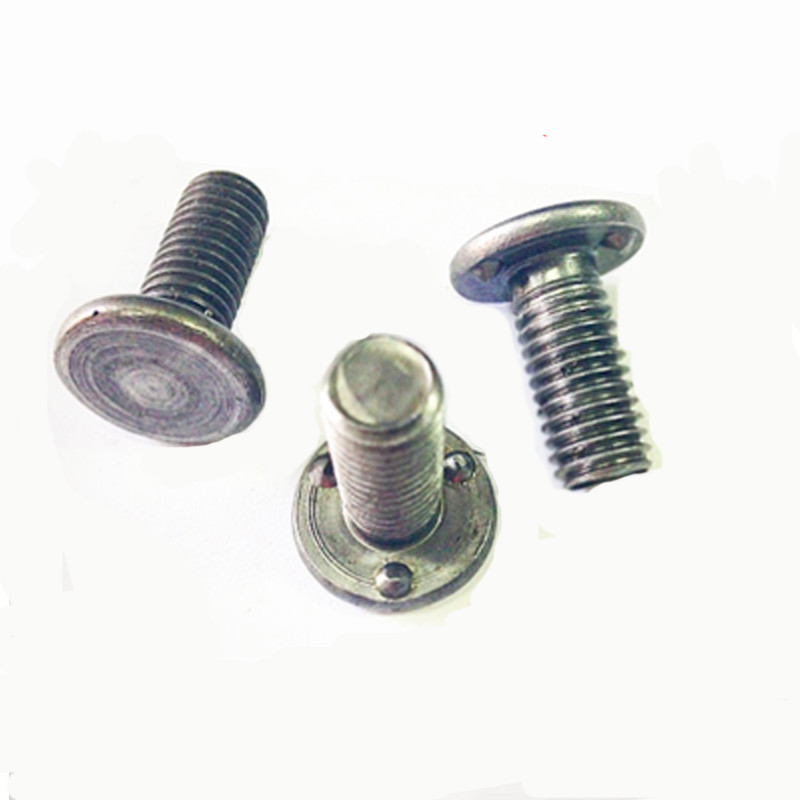

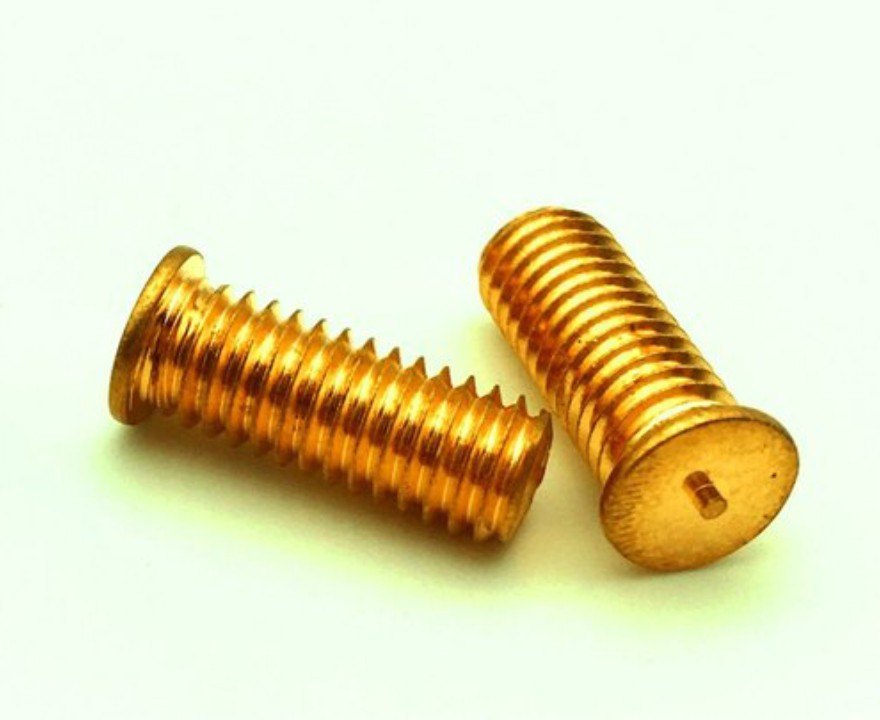

AProjection Weld Studis a specialized fastener designed for spot or resistance welding, featuring raised projections that localize heat and pressure to create a strong, durable bond between the stud and a metal surface. It is widely used in automotive, construction, electrical, and industrial manufacturing sectors due to its high strength and efficient assembly process.

Benefits of Projection Weld Studs

High weld strength:Multiple projections concentrate heat and force at defined points, producing consistent, and high-quality welds.

Leak-proof joints:Ring projection designs create hermetic seals, preventing oil, moisture, gas, and particle leakage critical for HVAC, electrical, and automotive uses.

Aesthetic finish:Minimal spatter and distortion provide a clean surface appearance ideal for visible assemblies.

Efficiency:Welding is fast and repeatable, reducing cycle times and scrap production compared to traditional fastening.

Versatility:Suitable for welding various metals like steel, stainless steel, and aluminium in both metric and inch thread forms.

Typical Applications

Projection weld studs are widely used wherestrong, permanent, and vibration-resistant jointsare required.
Common industries include:

Automotive:Securing brackets, panels, sensors, and heat shields.

Construction:Attaching structural frames and building supports.

Electrical and Electronics:Fixing grounding points, terminals, and contact plates.

HVAC & Refrigeration:Joining compressor panels or sheet assemblies.

Agricultural and Food Machinery:For clean and durable fastening.

Usage and Design Types

Projection weld studs come in several configurations based on design and mounting needs:

Right Angle Type:Used in confined spaces for offset thread mounting.

Top of Head Type:Offers exterior surface protection with balanced weld symmetry.

Under Head Type:Provides flush mounting and balanced joints.

Spade Type:Allows welding on non-flat or irregular surfaces.

Ring Type:Ensures full 360 weld seals against contamination.

For optimal performance, the surface must beclean, scale-free, and parts should be properly aligned before welding. The process uses two flat electrodes, pressure, and localized current to collapse the projections and create a reliable weld nugget.

Other Well-Known Names for Same Product

Projection Weld Stud, Projection Welding Fastener, Weld Studs Manufacturer, Projection Weld Screw, Ring Projection Weld Stud, Spade Weld Stud, Automotive Weld Studs, Stainless Steel Weld Stud, Resistance Welding Fasteners, Projection Welding Applications, High Strength Weld Studs, Industrial Weld Stud Supplier.

This comprehensive information helps in developing SEO-optimized website content forprojection weld studs, focusing on industrial strength, application versatility, and technical precision to attract B2B buyers in manufacturing and engineering sectors.
